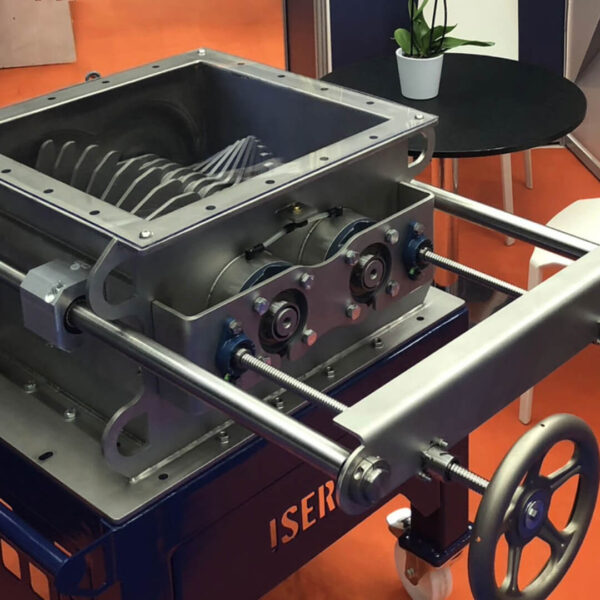

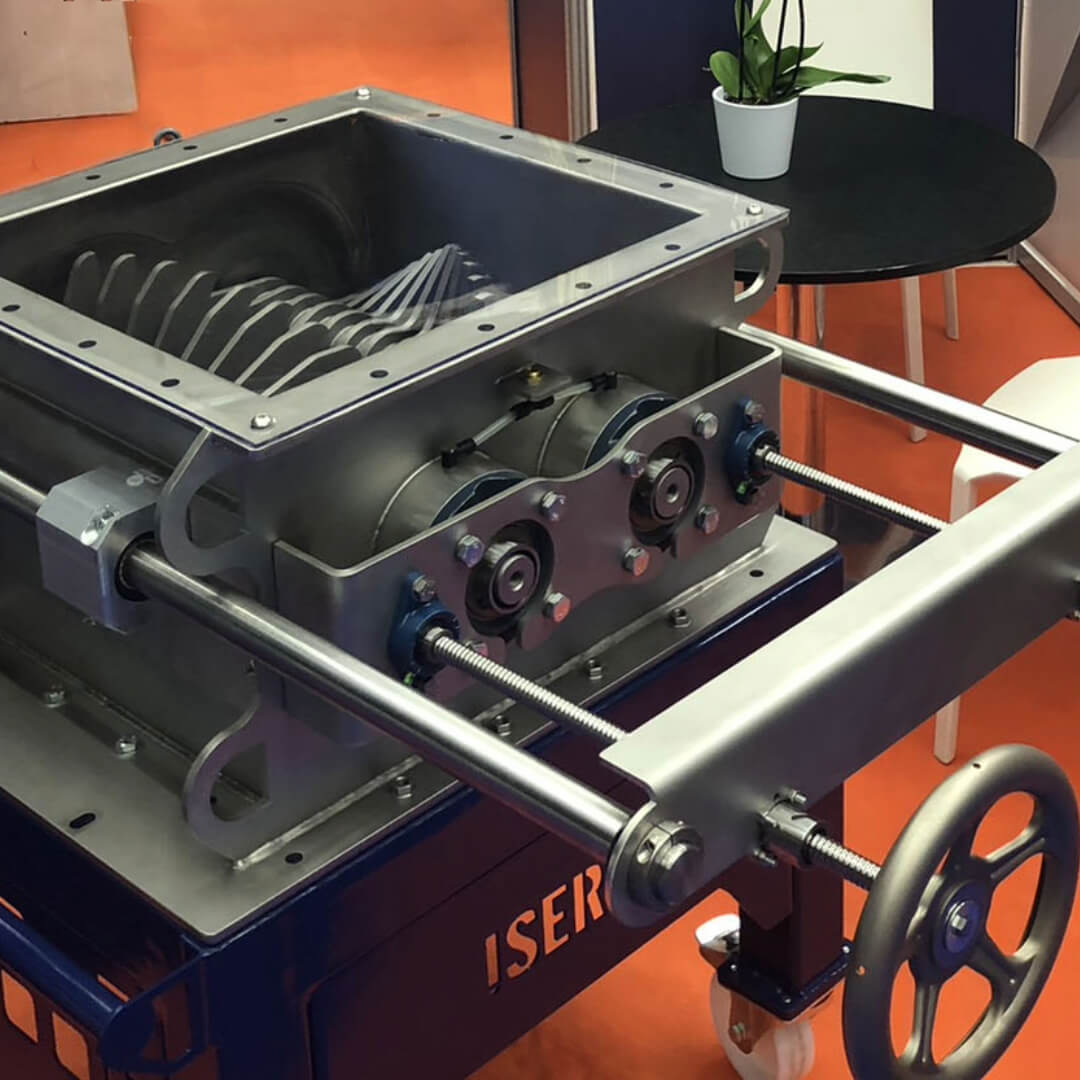

Lump-breaker with quick disassembly

The lump breaker is used to reduce the particle size of products that tend to form lumps. The lump breaker allows the product to be fluidised.

The lump breaker fits under the sealing and pre-feeding system.

Dimensions: 375 x 375 mm (flow rate 40 m3/h) / 525 x 525 mm (flow rate 50 m3/h)

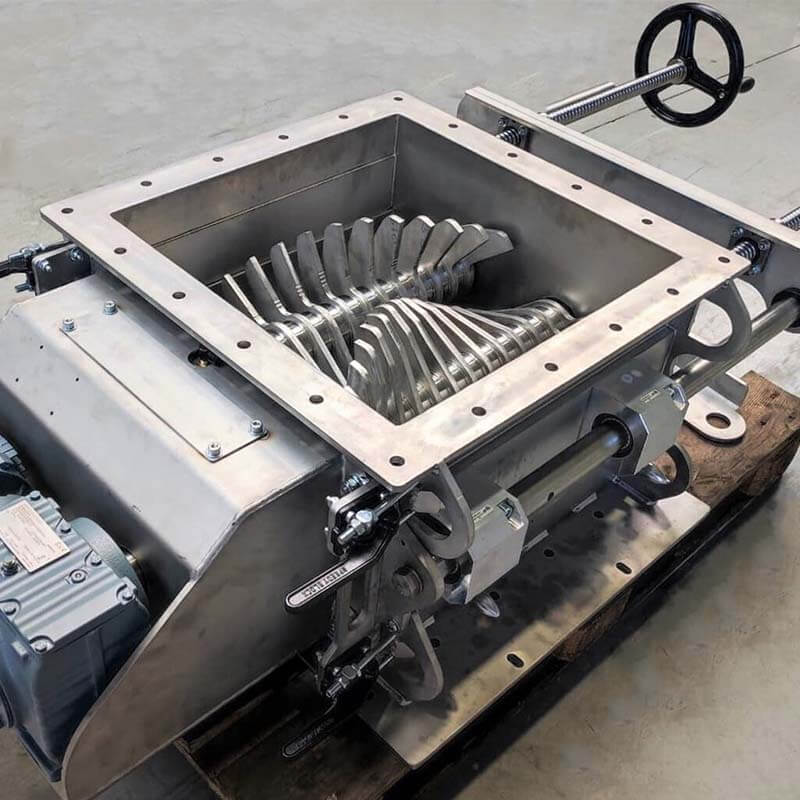

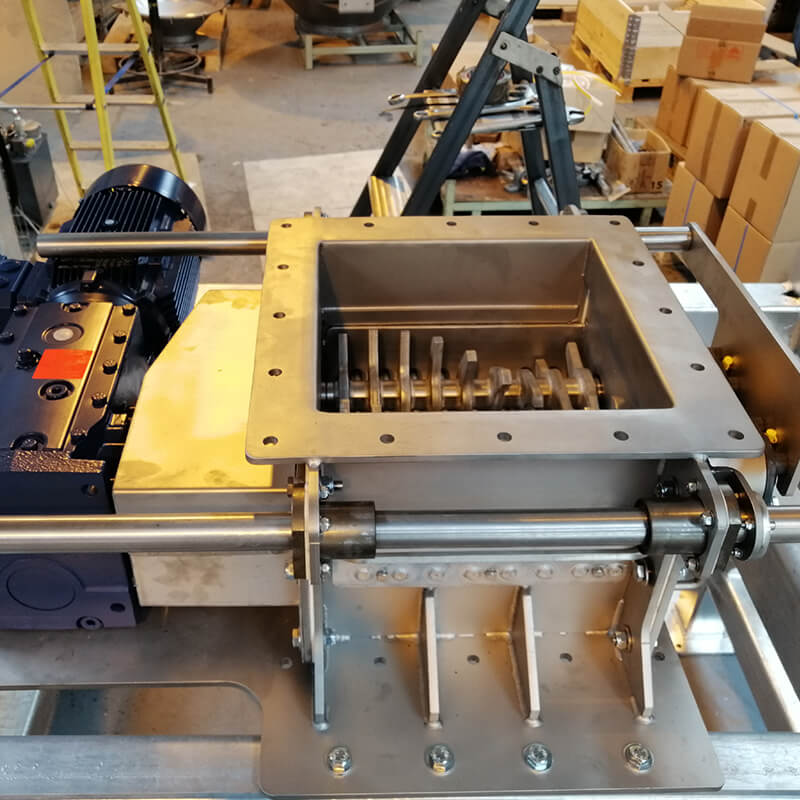

Quick release system allows the gear motor/shaft assembly to slide out for easy cleaning. An X mm mesh is installed on the outlet to ensure a selected particle size.

The lump breaker can be partially or fully dismantled for quick access to the shafts for cleaning. This allows the inside of the lump breaker to be completely cleaned without having to dismantle the entire assembly. The primary and secondary shafts are accessible via the removal flange. Similarly, seals can be changed without having to dismantle the entire system.

This unit is particularly popular in the food industry where a number of hygiene standards must be met.

Quick disassembly is an option for both single and double shaft crushers.

Category: Reduce a product
