Bag emptying hopper for poor flowability product

Difficulties in emptying a bag containing a poorly flowing product are often due to two main factors: the cohesion of the product itself, which tends to form aggregates, and the storage conditions, particularly humidity, which can reinforce these aggregates and make the product more difficult to empty.

There are 2 types of bag emptying hoppers: the bag emptying hopper alone and the bag emptying hopper integrated into a big bag emptying system which is able to receive 2 forms of containers: the big bag and the bag emptying system.

The bag hopper is used to empty bulk products conditioned in bags.
ISERCO offers a wide range of custom-made bag emptying hoppers, which are adapted to the requirements of the industry and the needs of our customers.

When a product contained in a bag has poor flowability, ISERCO offers solutions to help its discharge. In fact, the bag emptying hopper has several options to facilitate the emptying of the bag.

The following options are available:

• A suction and cleaning system

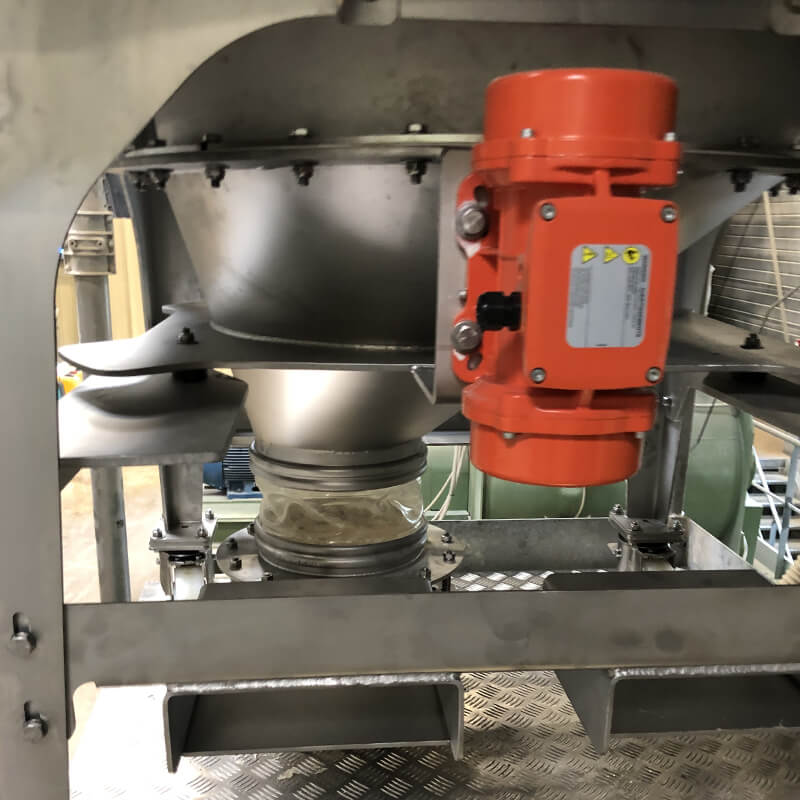

• A vibration system for easy product flow.
• Fishtails inside the hopper

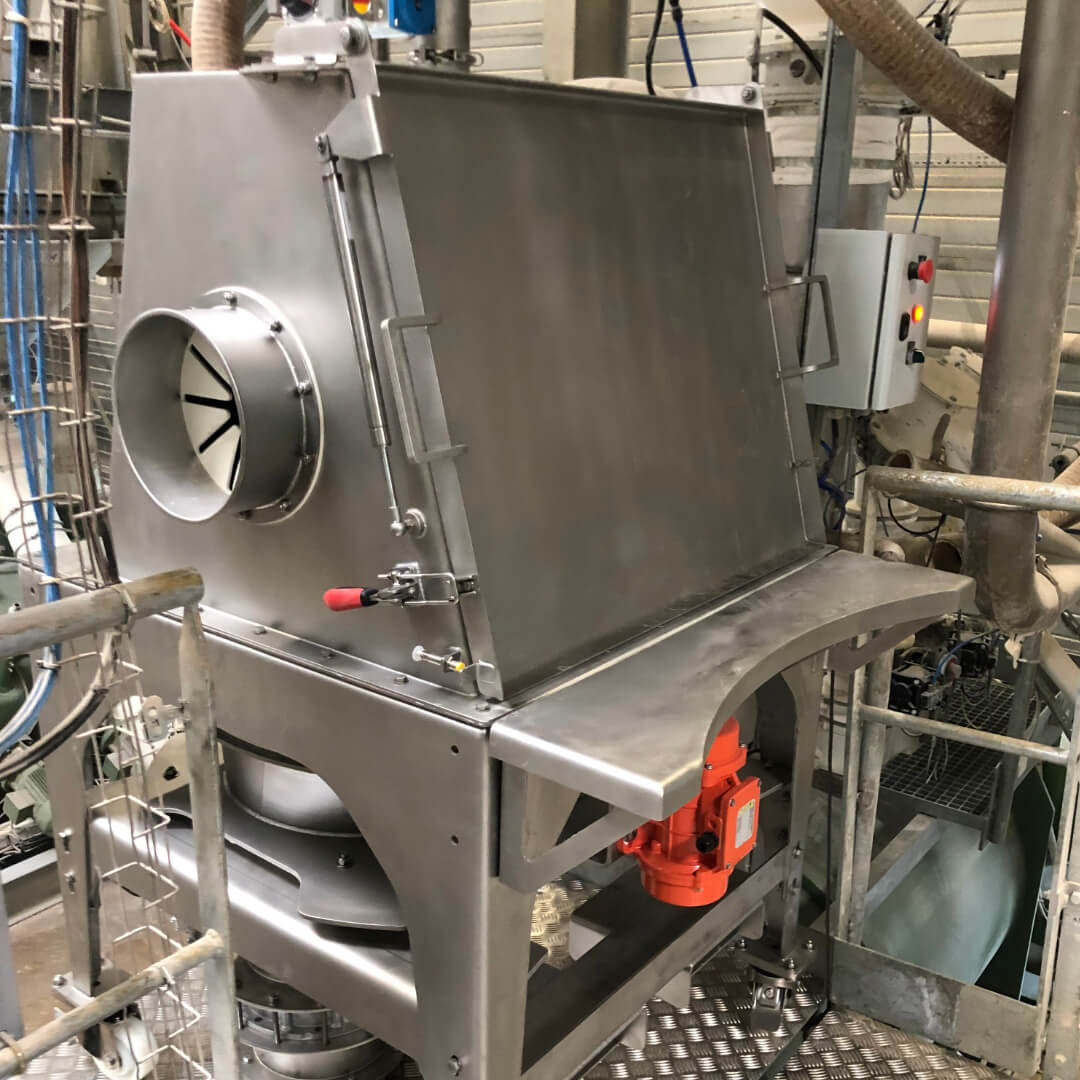

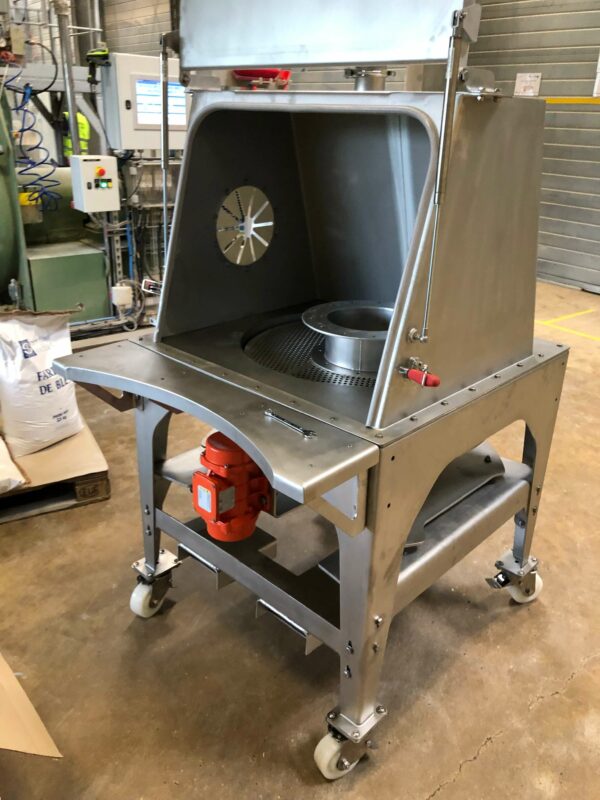

The bag emptying hopper, integrated into the big bag emptying station, is designed to empty the bags manually. The cover is held by gas cylinders. It is equipped with a dust exhaust connection or for connection of a filter bag, and a high-level probe. The bag emptying hopper is placed under a vibrating hopper, which is isolated from it to avoid resonance. The vibrated hopper allows for easy product extraction.

ISERCO empty-bag hoppers are made of stainless steel.
